NHD-1.69-AU-SHIELD

NHD-1.69-AU-SHIELD

OLED Display

  • $81.0678
Call 1-800-WPGA to place an order

Model Number: NHD-1.69--AU-Shield

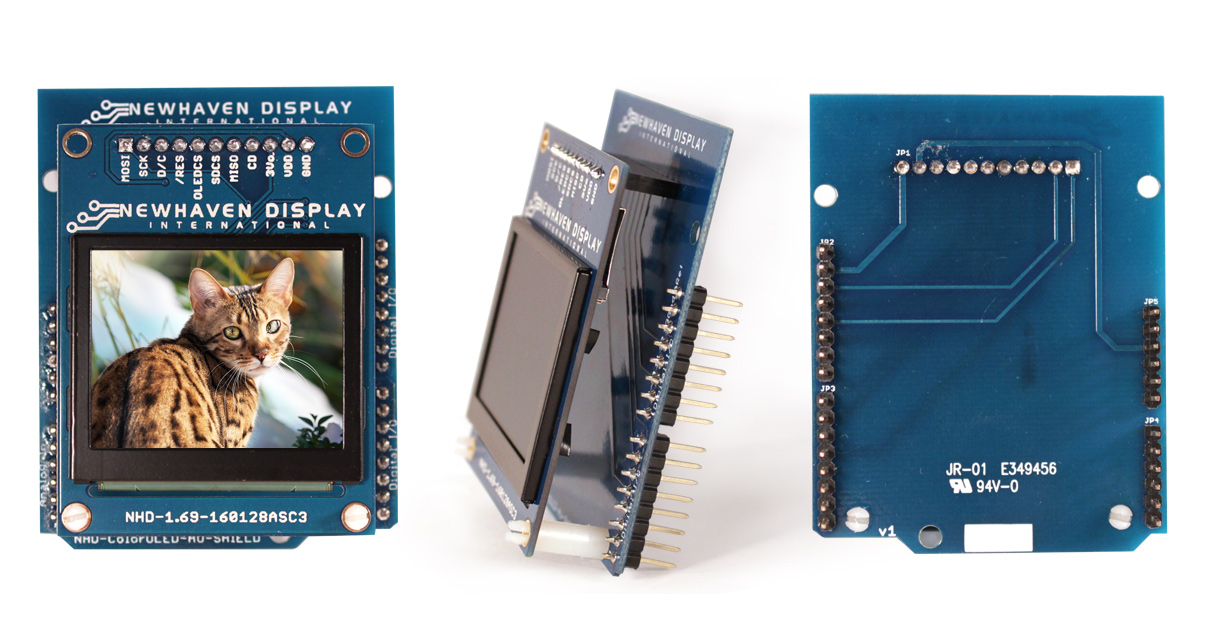

Description: Serial Color OLED Arduino Shield

Display Format: 160x128

Outline Dimension: 68.58 x 44.40 x13.61

Display Type: Graphic Color OLED Serial Module + Arduino UNO Shield

Back Light: None

Character Size: /

Display Mode: 262K

Operating Temperature: (-)30 ~ (+)70

Interface: SPI MPU

Voltage Supply: 3.3-5V

View: Full View

Compatible Controllers: SEPS525

Connector Type: 1 x 11 2.54mm pitch header

Country of Origin: China

Is part ROHS Compliant? : Yes

Is part Lead (PB) free? : Yes

Manufacturer Part Datasheet

    • Weight
      0.1 kg
    • SKU
      NHD-1.69-AU-SHIELD
  • Manufacturer
    NEWHAVEN
*Some items purchased may be subject to a 25% China Tariff. Purchaser will be contacted before shipment to coordinate payment of any Tariff on items ordered.
